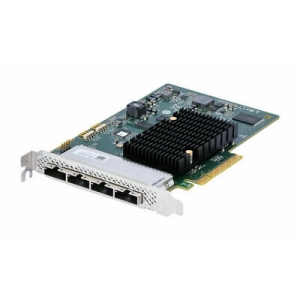

Controller HBA LSI SAS9201-16e 4 port SAS 6GB/s PCI-e x8
Refurbished
1789
lei338.80
Tax included
Overview
The LSI® SAS 9201-16e PCI Express® (PCIe®)-to-Serial Attached SCSI (SAS) host bus adapter (HBA), hereinafter referred to as the LSI SAS 9201-16e HBA, provides high-performance external storage connectivity for servers and workstations. The LSI SAS 9201-16e HBA provides sixteen lanes of 6Gb/s SAS connectivity and eight lanes of PCIe 2.0 5Gb/s performance. The LSI SAS 9201-16e HBA is based on the Fusion-MPT™-architected LSI SAS 2116 controller that integrates the latest enhancements in PCIe 2.0 technology and 6Gb/s SAS technology. The LSI SAS 9201-16e HBA has onboard Flash memory for the firmware and BIOS, and onboard DDR-2 SDRAM.
HBA Features
This section lists the LSI SAS 9201-16e HBA features.
Implements one LSI SAS 2116 sixteen-port 6Gb/s to PCIe 2.0 controller
Supports eight-lane, full-duplex PCIe 2.0 performance
Supports sixteen external 6Gb/s SATA+SAS ports
Supports SAS link rates of 1.5Gb/s, 3.0Gb/s, and 6.0Gb/s
Provides four x4 external mini-SAS connectors (SFF-8088)
Supports DDR-2 speeds up to 800 MT/s
Supports active cable and passive cable
Supports up to 512 SATA or SAS end devices
Provides one heartbeat LED and two activity LED headers
Provides a universal asynchronous receiver/transmitter (UART) debug/diagnostic port
1789
Data sheet
- Warranty
- Garantie 1 An
- Other Details
Refurbished
